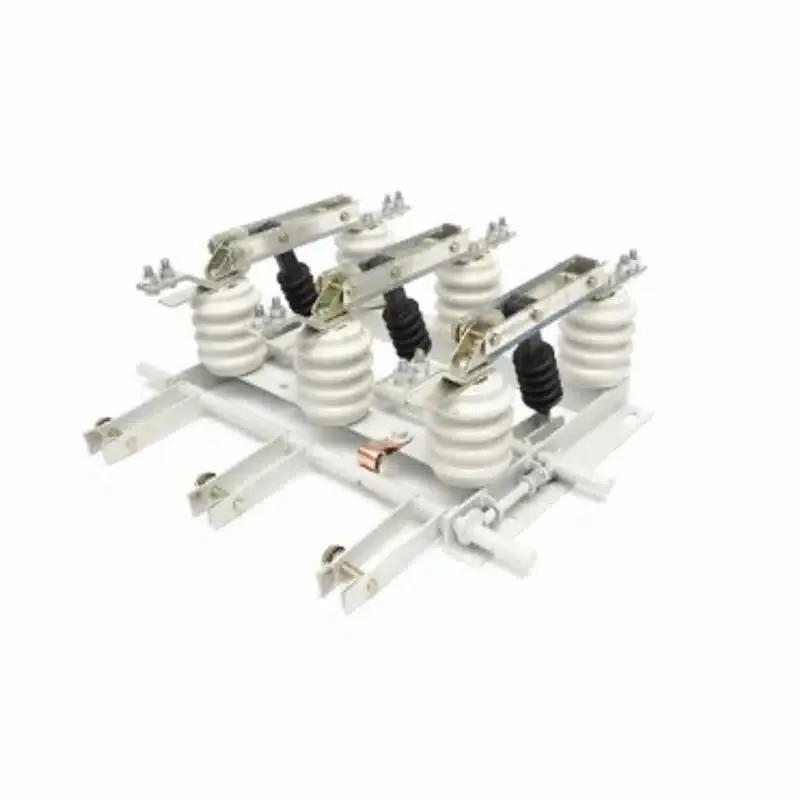

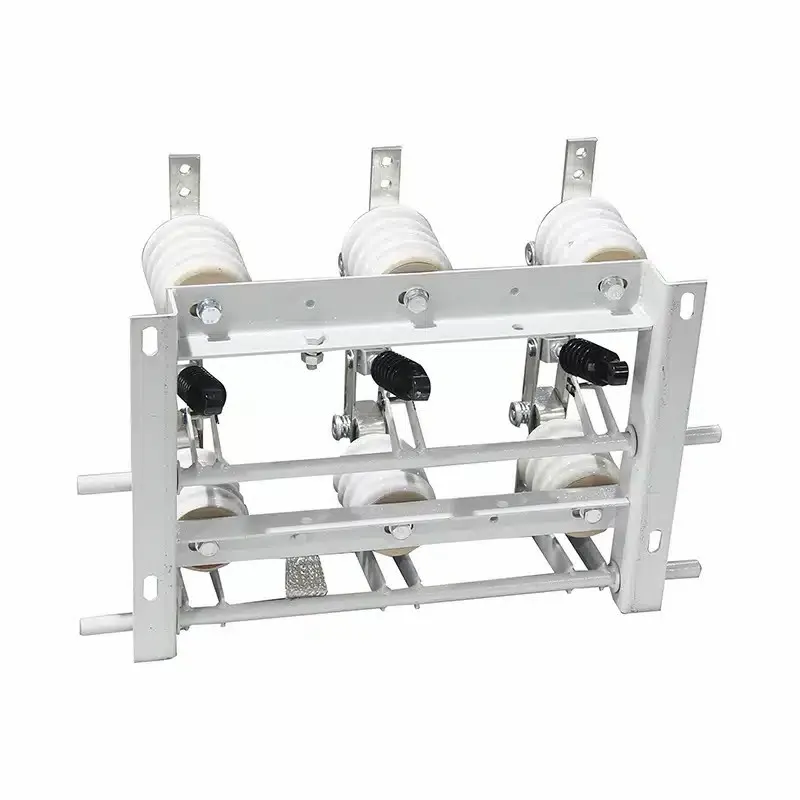

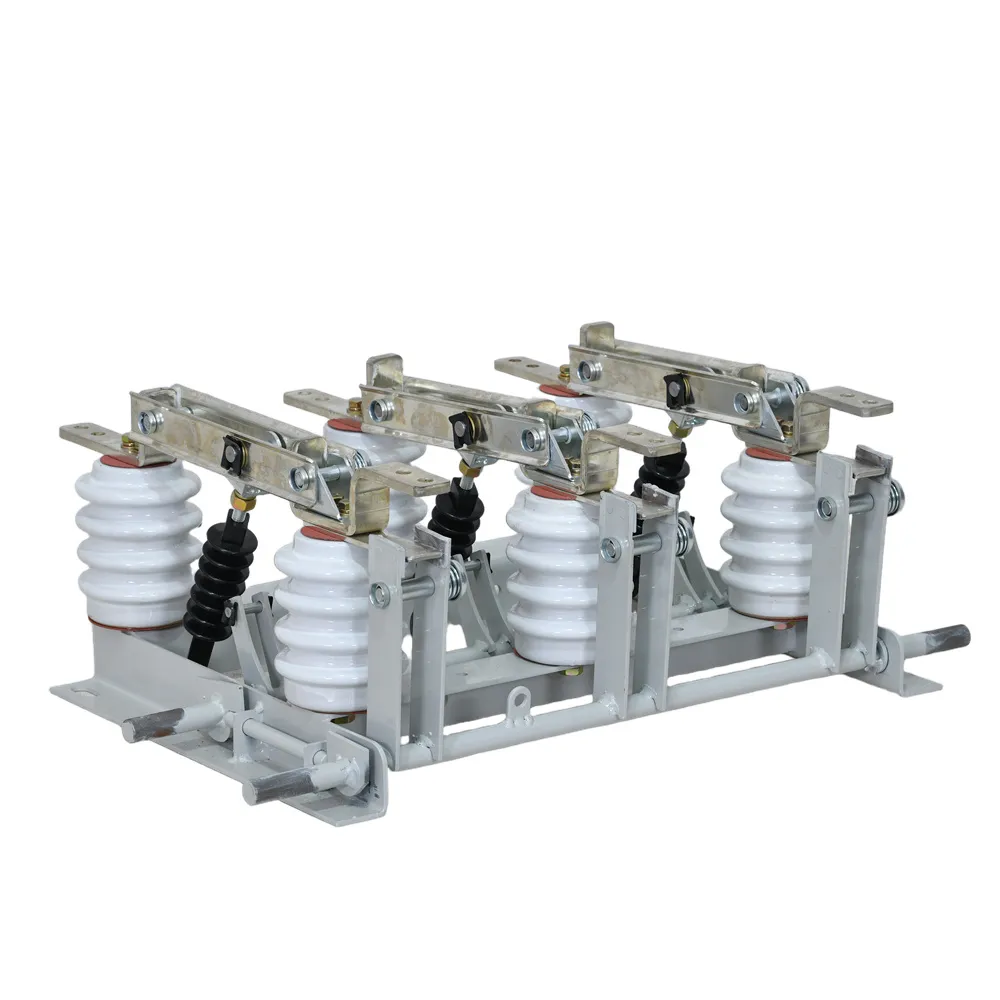

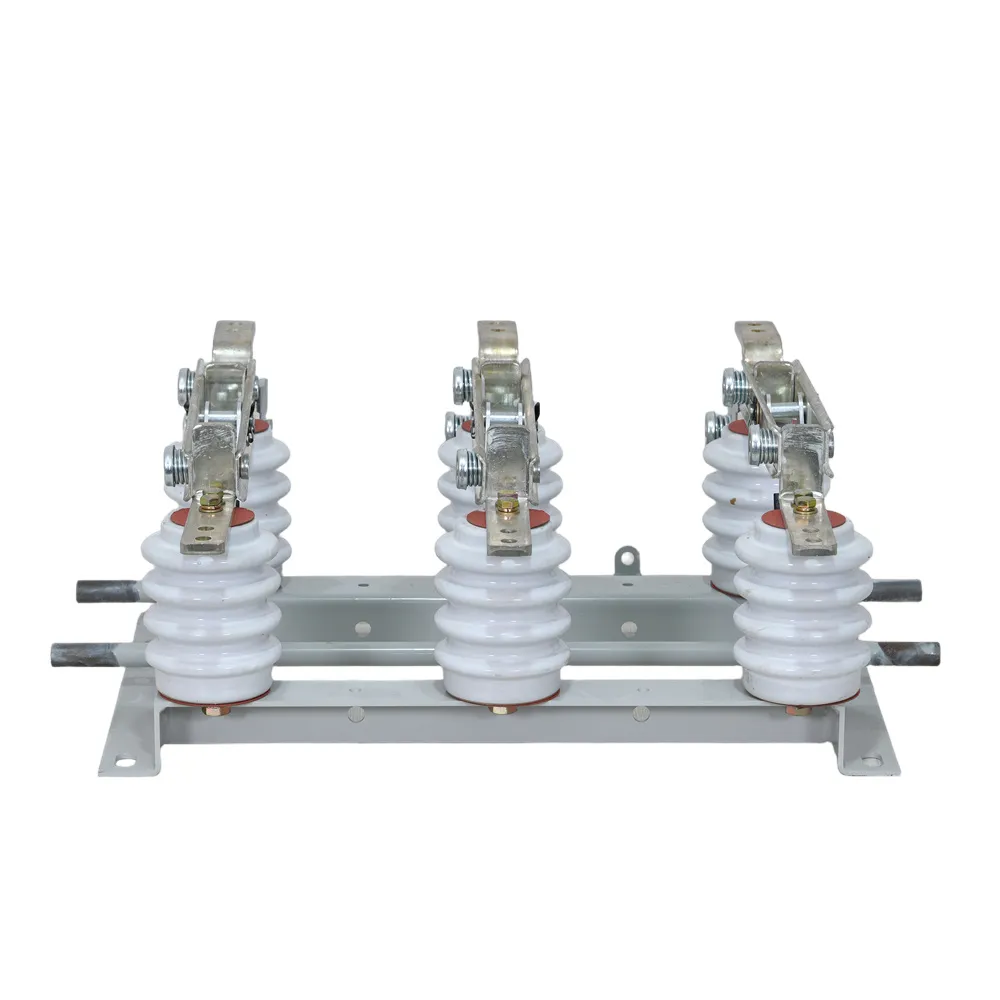

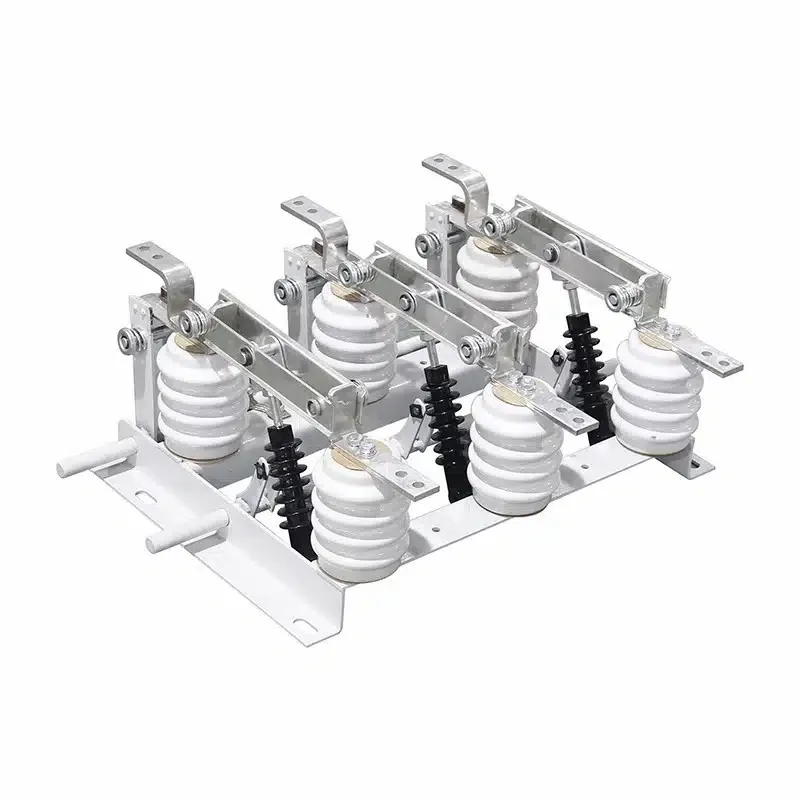

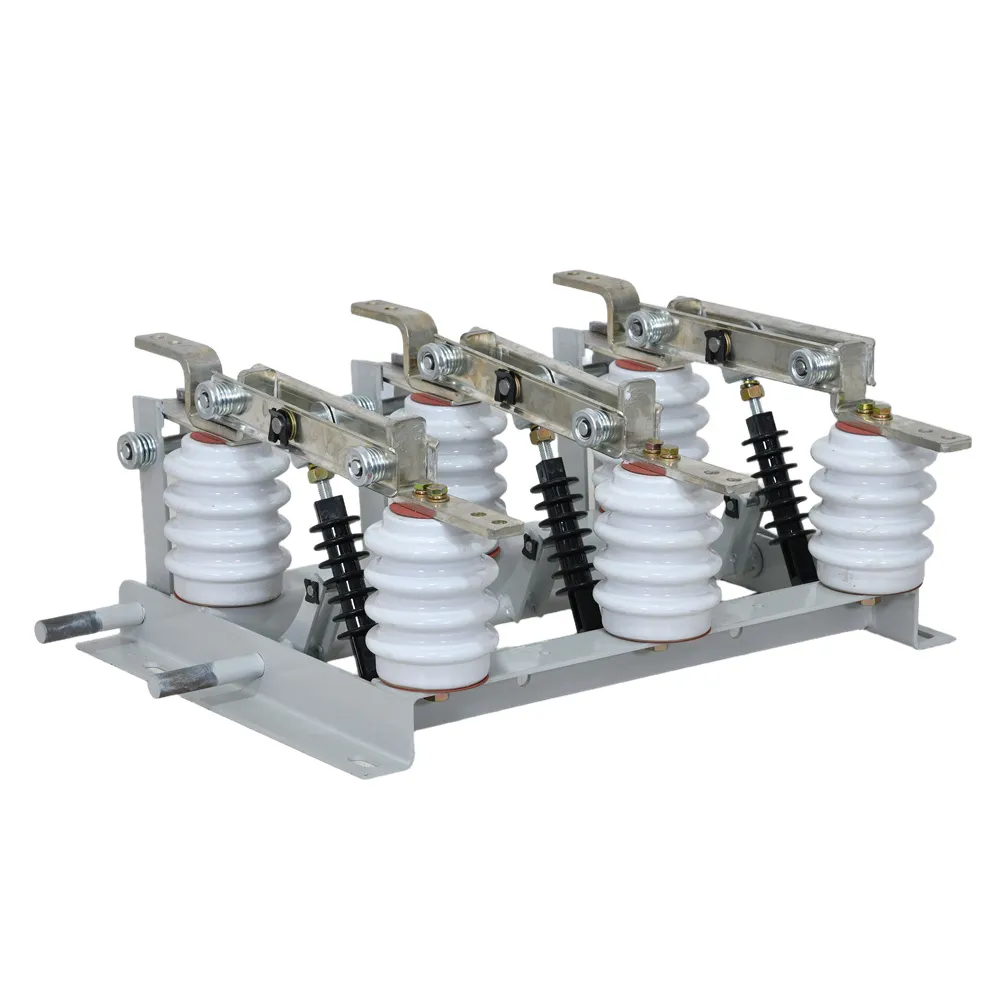

Grounding Blade for Use in AC Power Networks with 50-60 Hz Frequency, Rated Voltage 10kV
This switch performs the following functions:
Closing/opening electrical circuits in the absence of load current or for transforming circuit connection schemes;
Creating a visible circuit break for safe operation on an isolated section;
Connecting and disconnecting charging currents of air and cable lines, no-load currents of transformers, and weak load currents.
| Parameter Name | Value |
| Model (Series) | RVZ |
| Nominal Voltage, kV | 10 |
| Number of Poles | 3 |
| Nominal Current In, A | 630 |
| Protection Degree | IP00 |
| Maximum Operating Voltage, kV | 12 |
| Rated Thermal Stability Current, kA | 20 |
| Nominal Frequency, Hz | 50/60 |
| Disconnector Weight | 26 kg |
